Fusion LED PCB 120 is available in
1 finish and 2 colour temperatures.

Prev
Next
Features

Product Features

Prev
Next

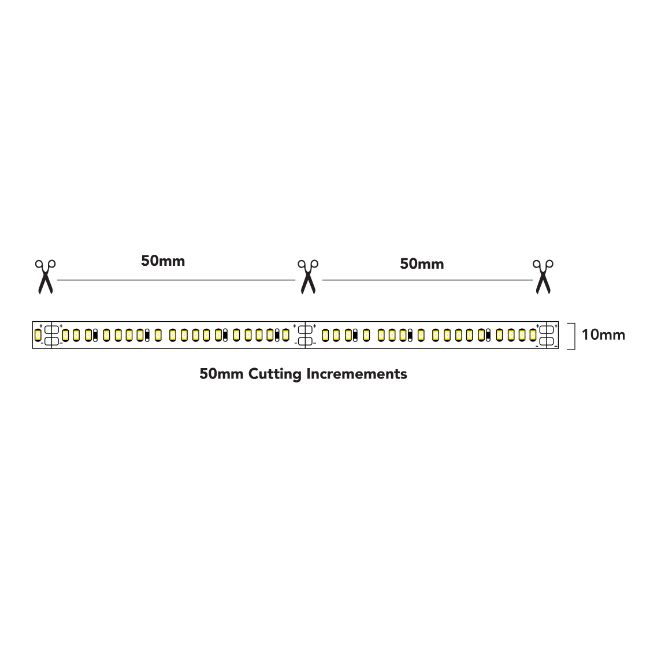

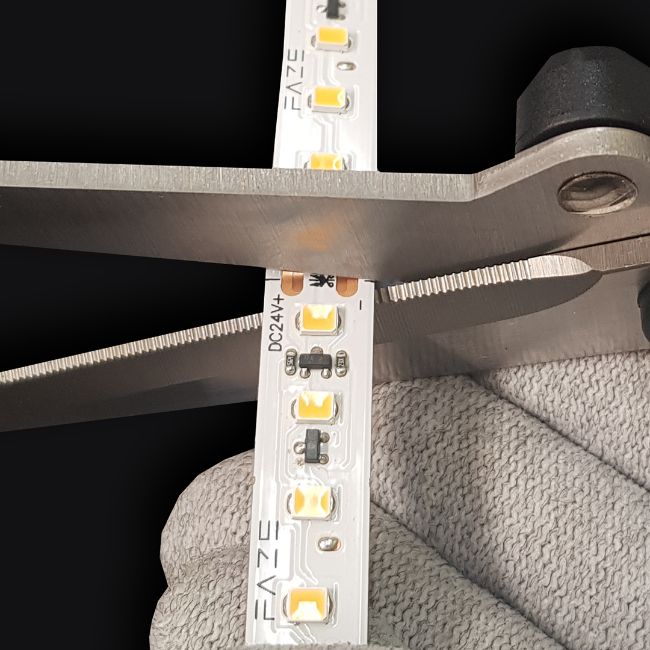

Customised in 50mm increments

Cut and connected in Australia, ready to go when it arrives on site.

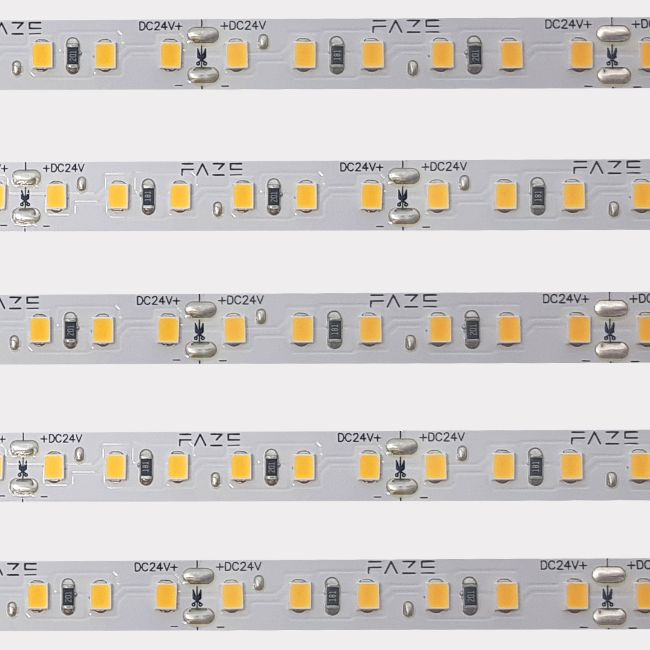

Premium 4oz PCB Board

This means the electronics within the LED strip are far more durable and less likely to break.

95+ CRI

For excellent colour rendering that will enhance any architectural features

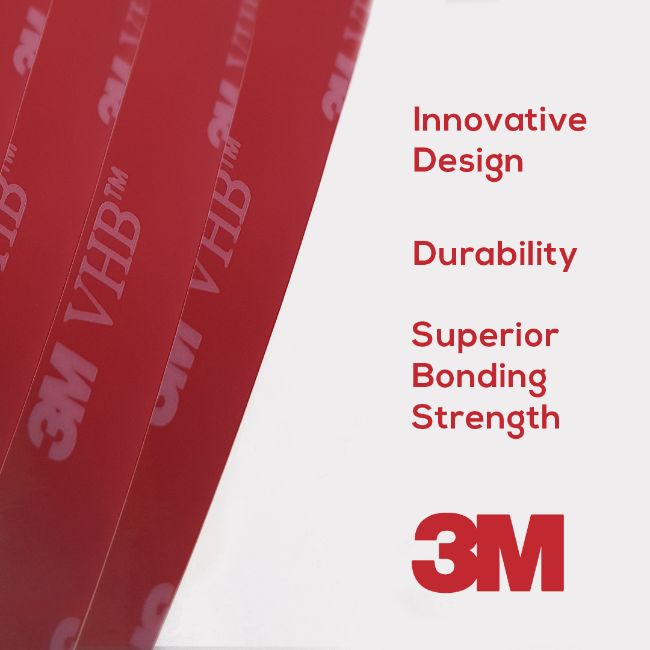

3M VHB Mounting Adhesive

We are one of few that use a 3M VHB mounting adhesive, which allows for a stronger and more durable bond between the LED strip and its surface.

General Specifications
CCT 3000K | 4000K
Materials PCB
Finish White
CRI 95+
IP Rating 20
Colour Deviation SDCM ≤2
Lifetime >54,000hrs L70 B10
Warranty 5 Years
Lumens 790 | 890
Efficacy 82 lm/w | 92 lm/w
Beam Angles 120°
Watt/m 5W p/m | 10W p/m | 15W p/m
Dimensions (MM)
ACCESSORIES

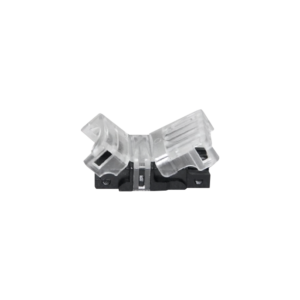

Fusion LED Connector

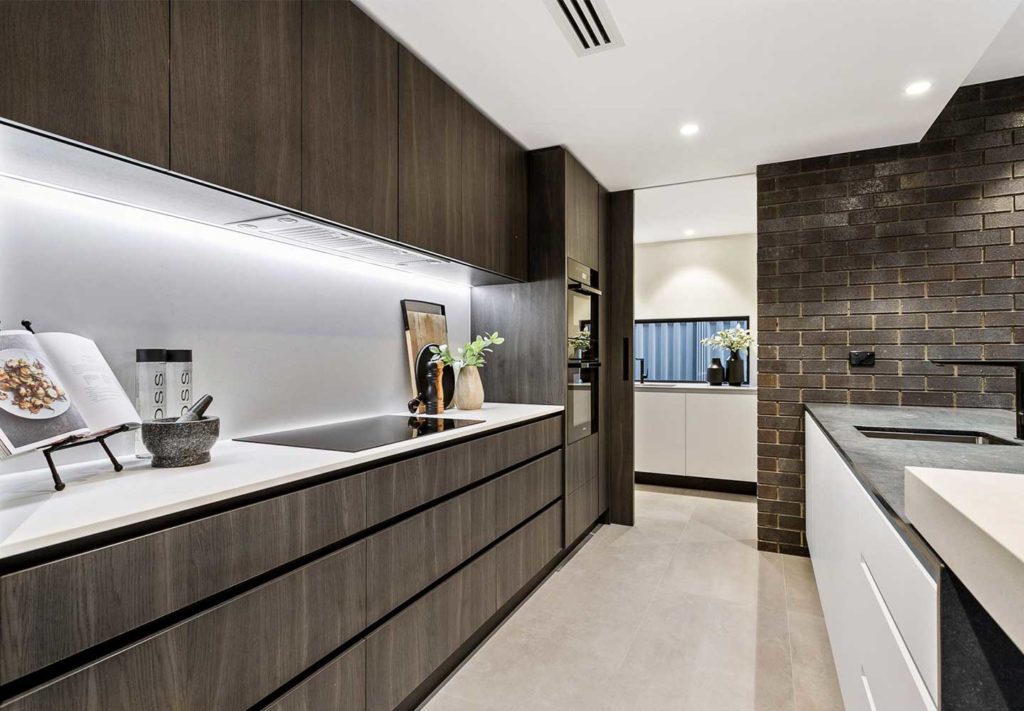

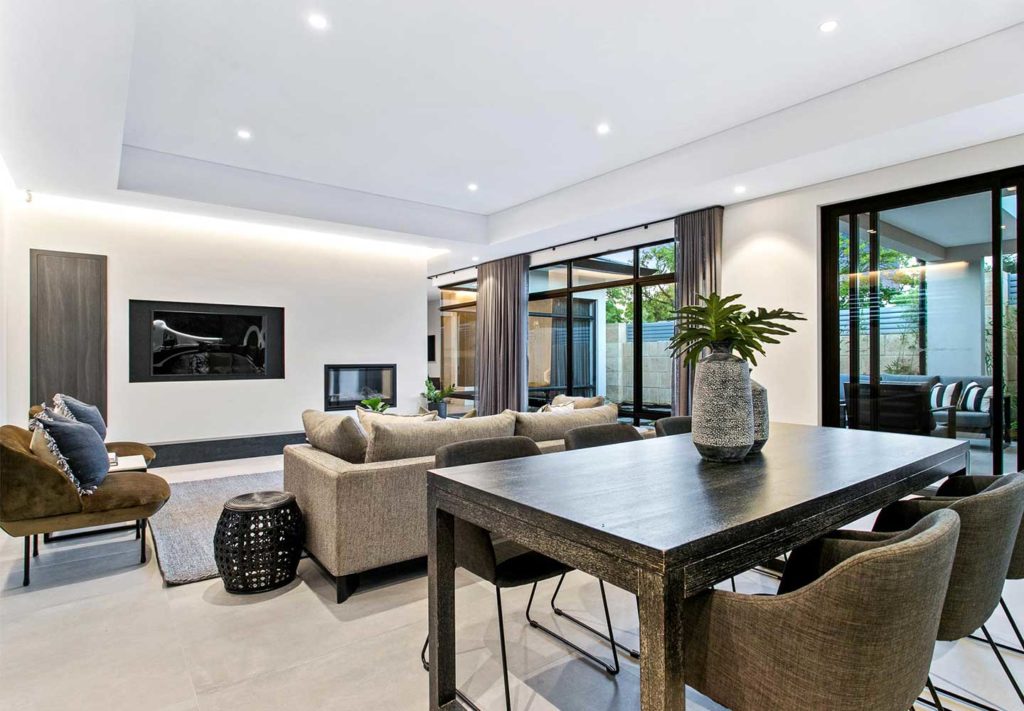

Design Gallery

See this product in situ

Prev
Next
Contact

Tell us what you need and we’ll be in touch shortly to discuss your requirements.

Fields marked with * are required.
This field is for validation purposes and should be left unchanged.
Other Products

You might also like...

Prev
Next

Working on a project?

Enquire now

Looking for a supplier?

Where to Buy
Back Close
Get Directions
Contact

Contact Us

Give us a call or shoot us an email:
1300 438 609
sales@radiantlighting.com.au
We're in Perth!

10 Gibberd Road Balcatta, WA 6021

Our Showroom Opening Hours

We’re open 8am – 5pm Monday to Friday and 8am – 12:30pm on Saturdays.

Our lighting consultants are always available during these hours to help you with any solutions you may need.

Need help? Read our FAQs here

Get Directions
MAKE AN ENQUIRY
Where to Buy

Where to Buy

WA

VIC

QLD

NSW

ACT

SA

Downloads

Faze Downloads

I WOULD LIKE TO:

FAQs

What are LED lights and what are their advantages?

LED stands for Light Emitting Diode; a semiconductor device that converts electricity into light. LEDs use approximately 85% less energy than halogen or incandescent lighting (hello power bill savings!) and also have a much longer lifespan, roughly 25,000 – 50,000 hours depending on the ‘globe’. LED’s are also eco-friendly, they don’t contain any harmful mercury, they don’t emit any CO2 and they can be recycled without harming the environment.

What is the difference between 3000k and 4000k?

Kelvin (K) is a measurement of light colour and is not a measurement of brightness, 3000k is a warm white, whereas 4000k is a cool white. The higher the number of Kelvin, the cooler the light. Think of the ember warmth of candles or firelight (which is 1000k-2000k), compared to the blueish tint of daylight, which is around 5000k. The colour temperature will impact a number of factors, including the ambience of a space.

What is a good colour temperature for my home?

Our lighting consultants lean toward a 3000k as it is not too warm/yellow toned and will therefore provide a clean white finish that is also still soft. However this can differ as some people may prefer a cooler white to others. For example, homes that feature a monochromatic palette of whites and blacks will suit a 4000k better – to bring out the whites and not create a yellow wash.

What are 'lumens'?

Lumens are a measurement of the total amount of visible light from a light source, this is the term used in place of wattage on the old scale. Typically, closer to 100-lumen per watt is very efficient – a standard downlight at 10.5W should be closer to 900lumen – this means it is performing at a higher level with less power.

What is CRI?

CRI stands for Colour Rendering Index, which measures the ability of a light to accurately reproduce the colour of various objects. The closer to 100, the higher the quality of the light source.
