Variables

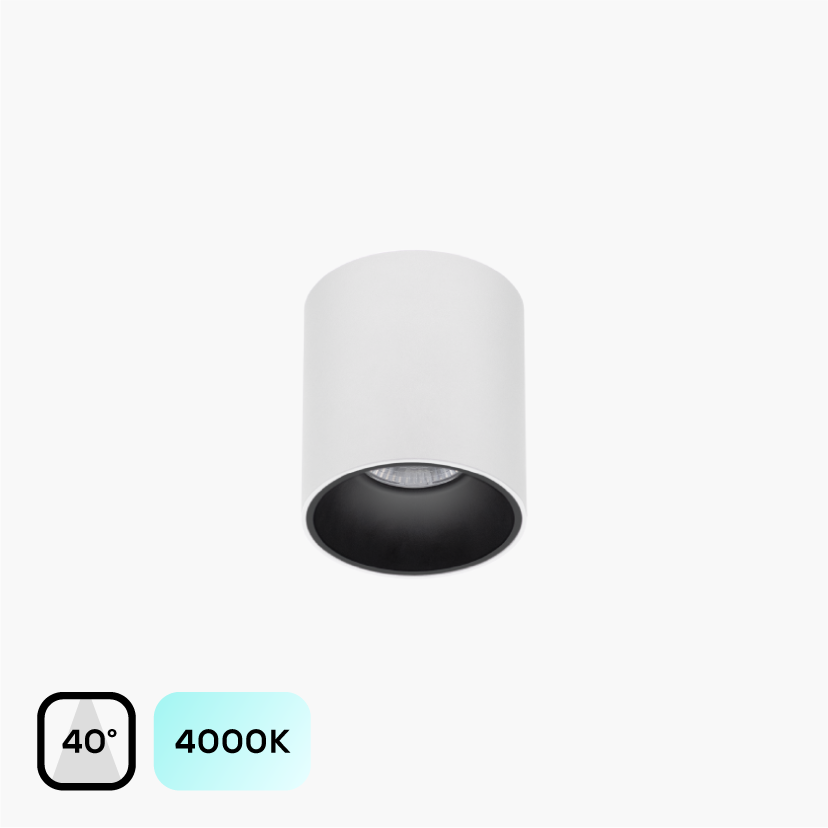

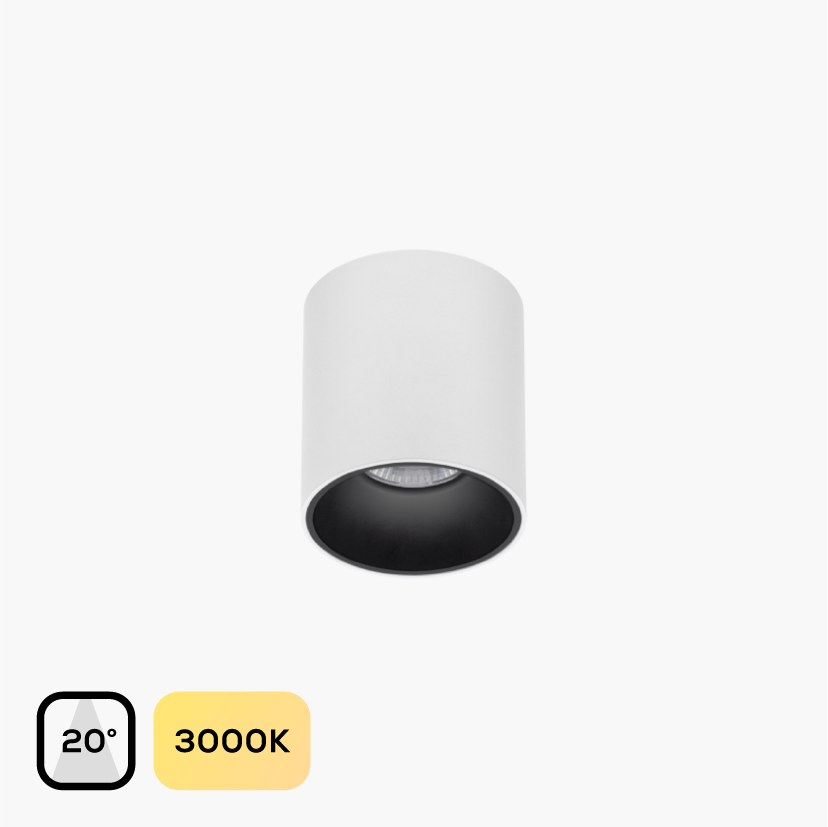

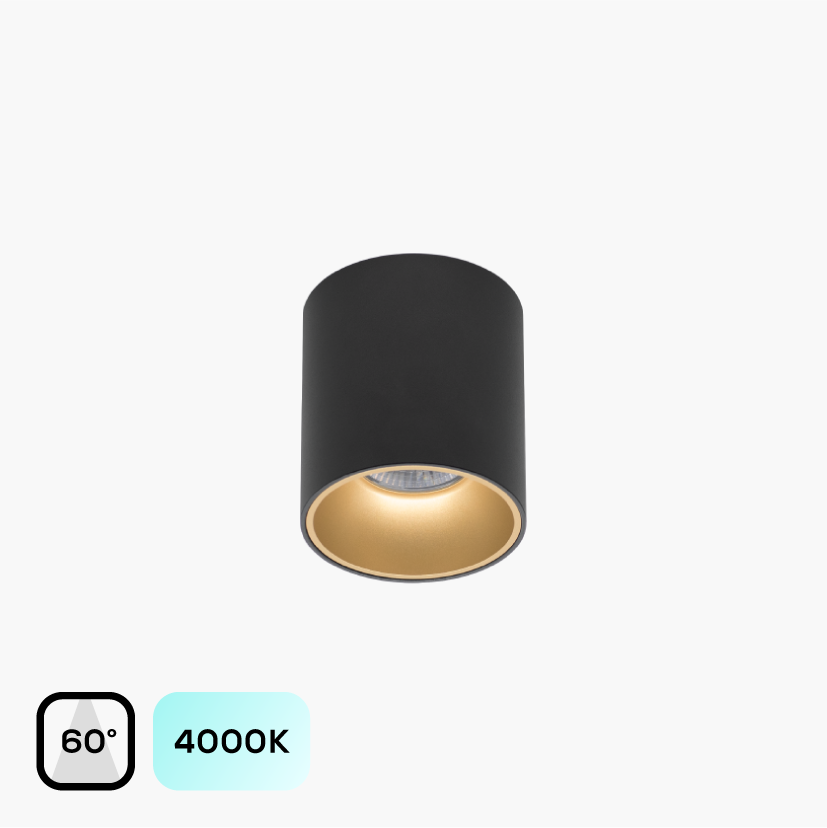

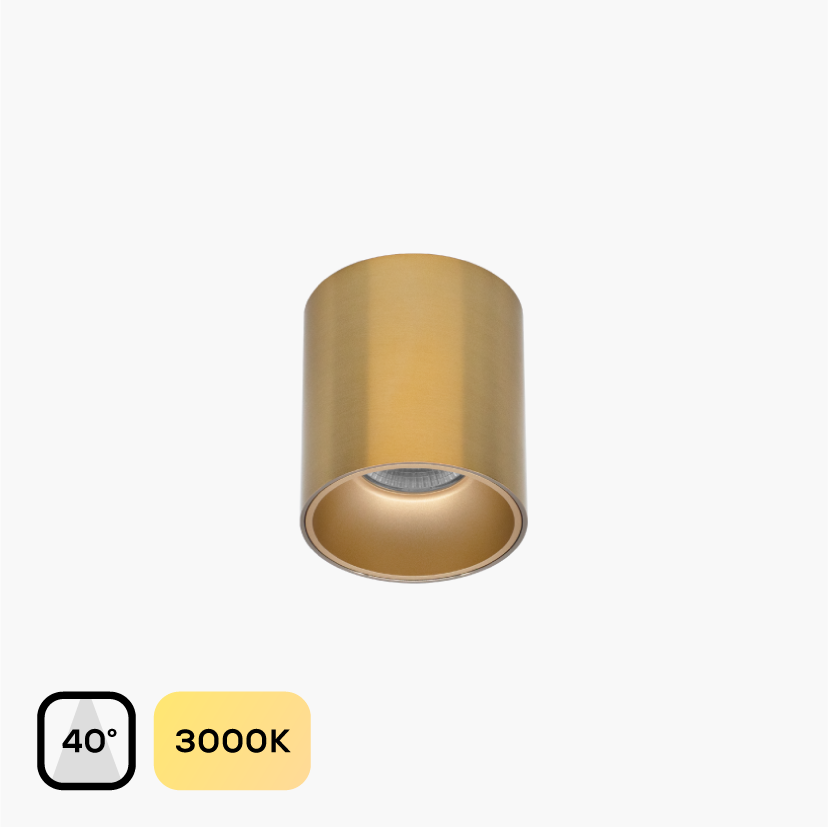

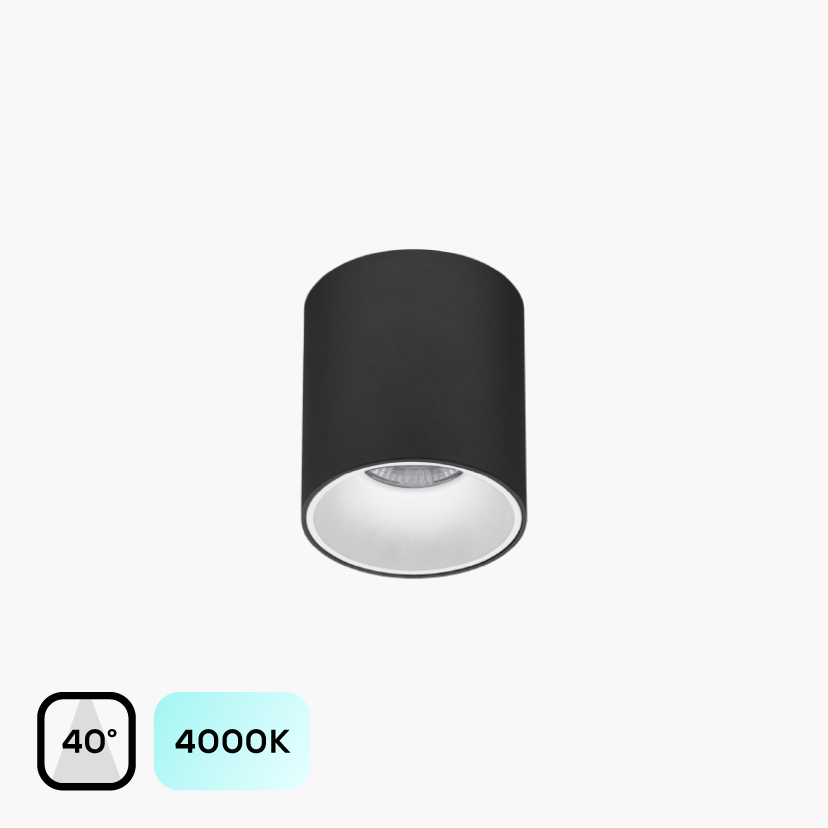

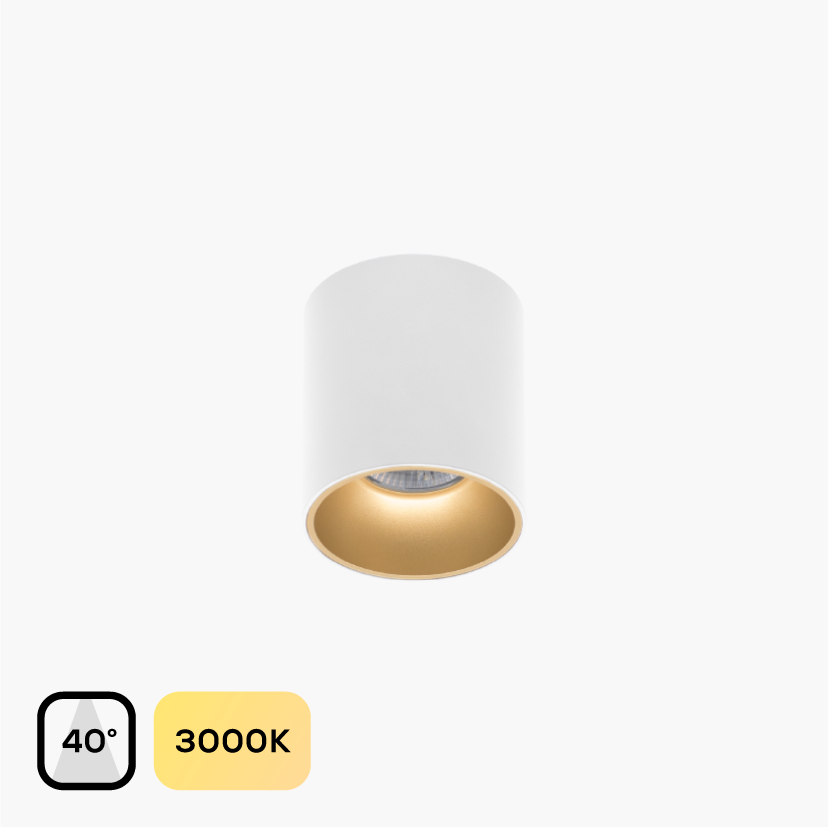

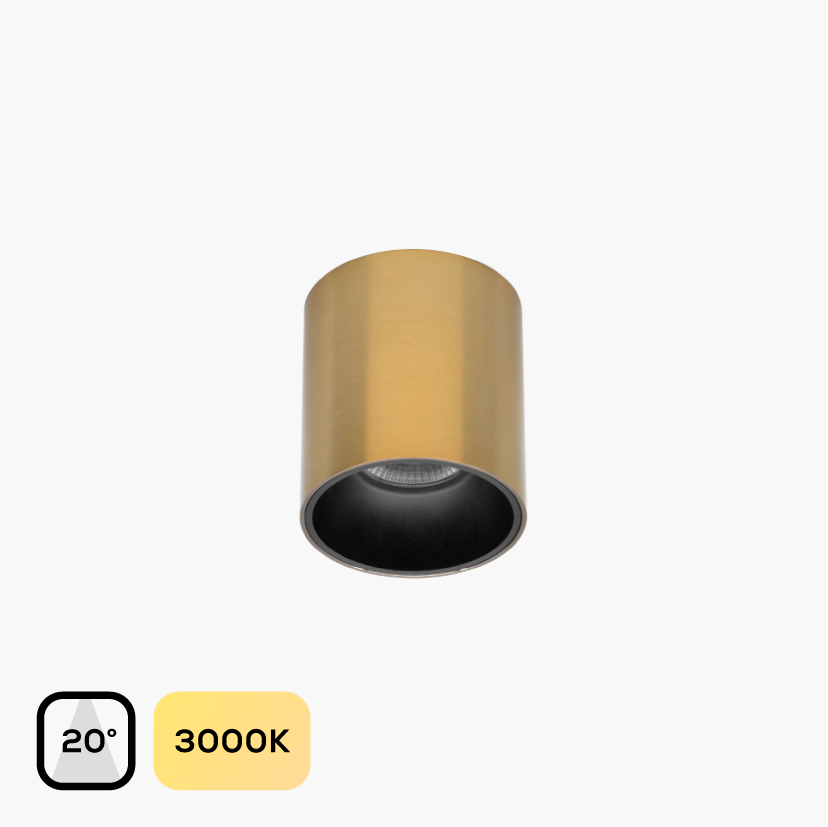

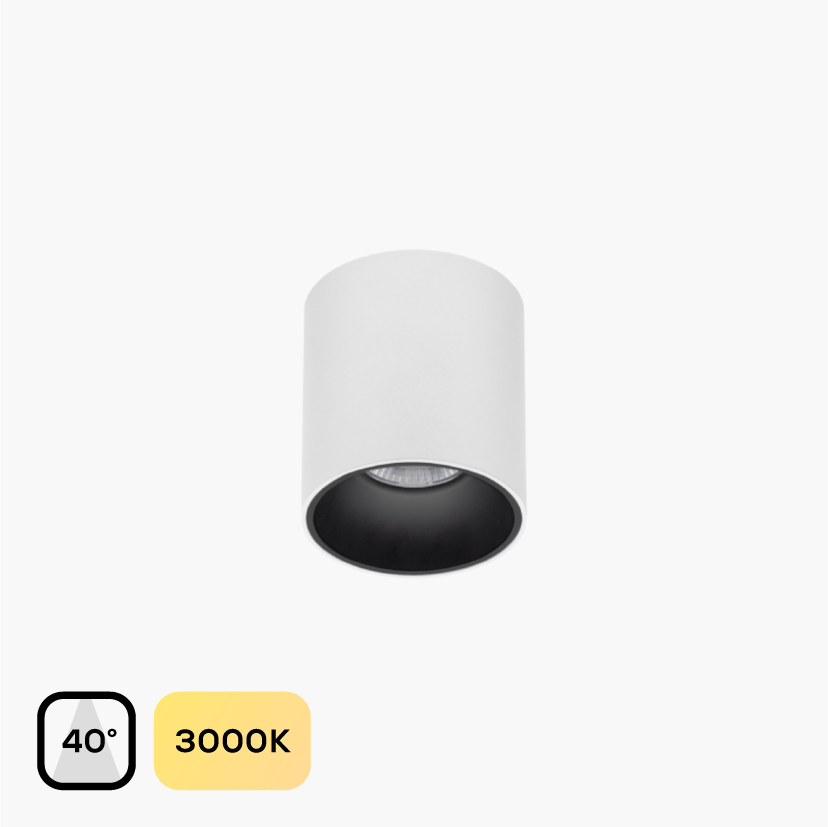

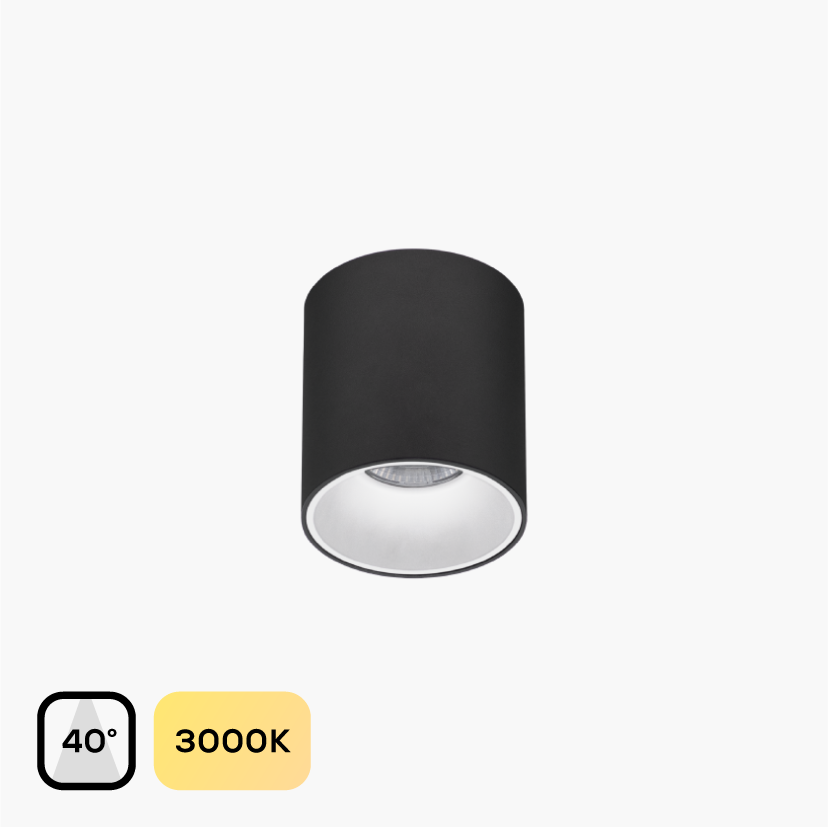

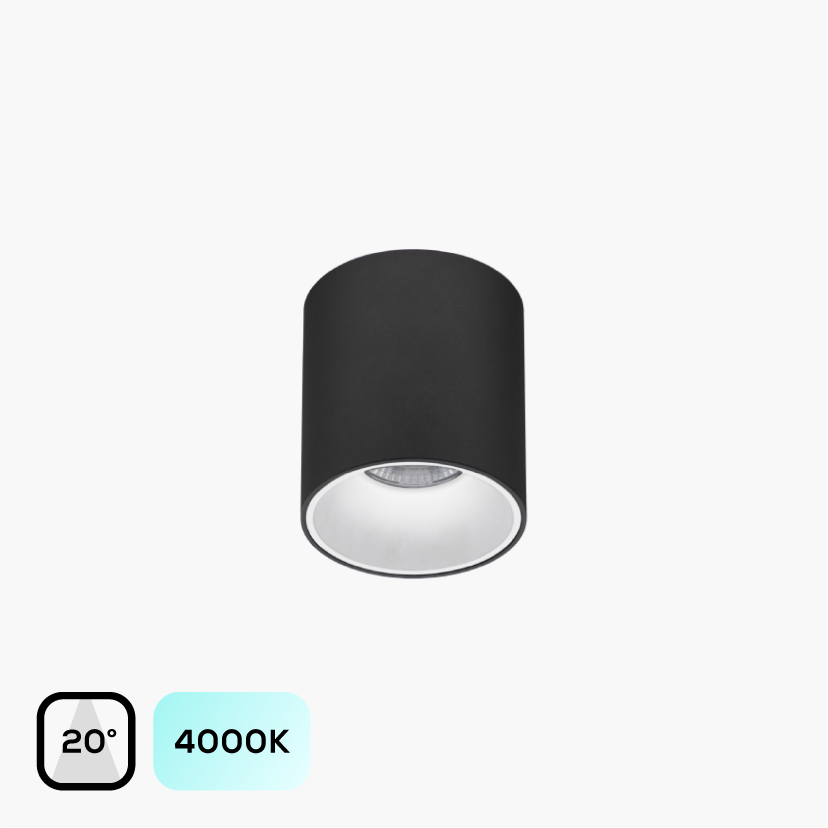

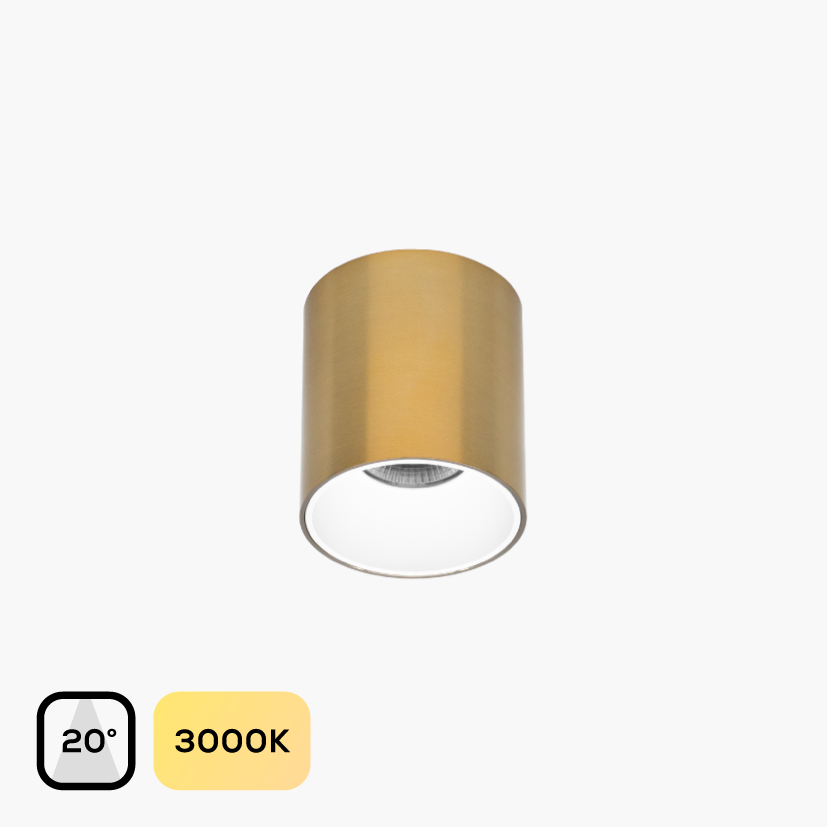

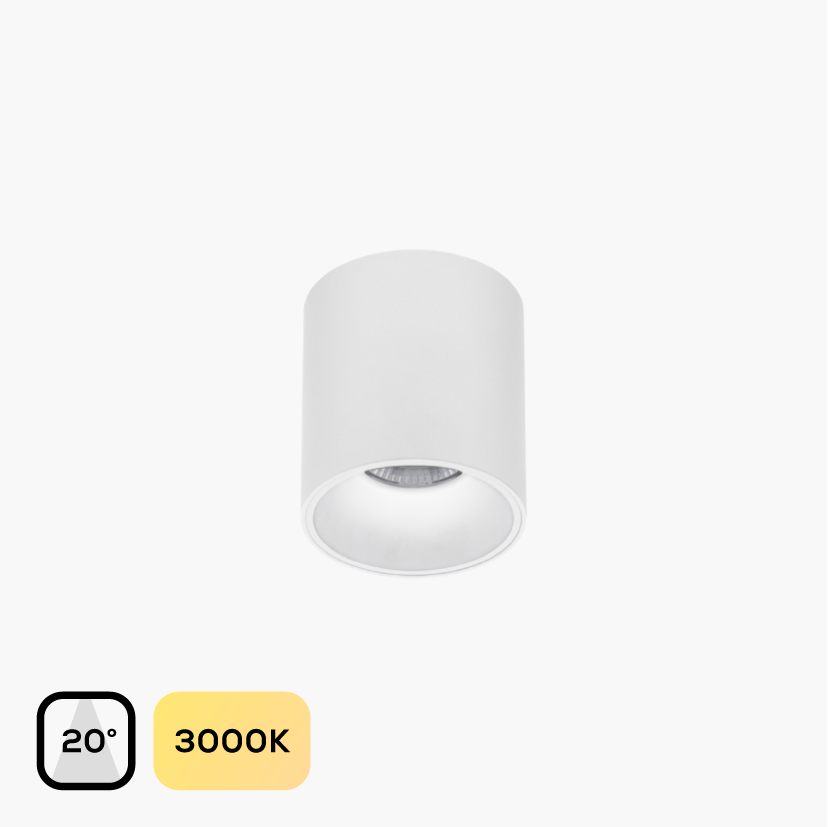

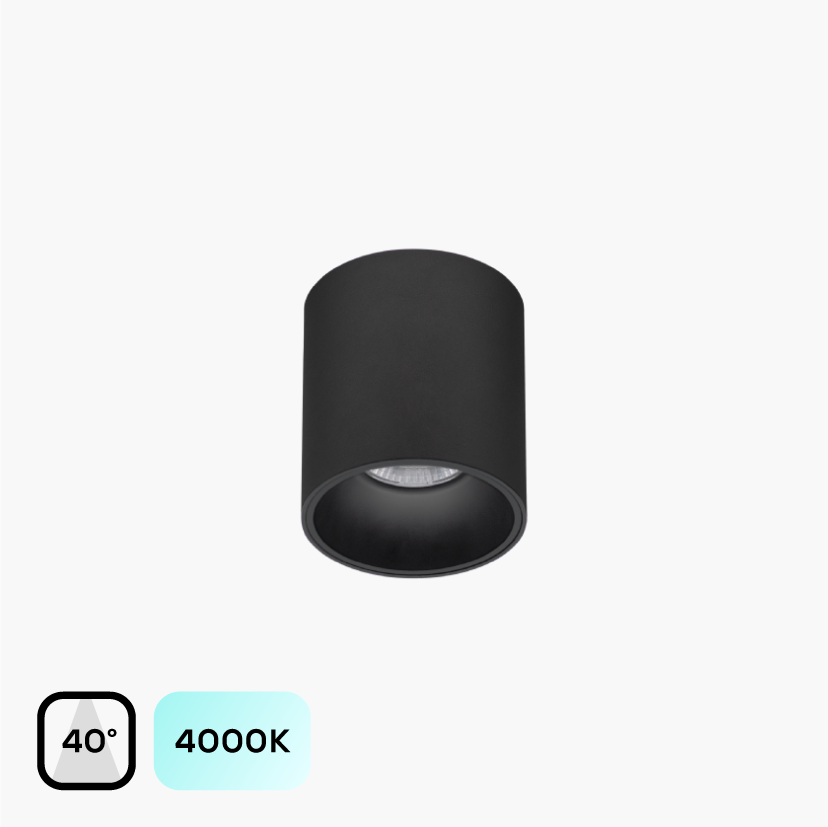

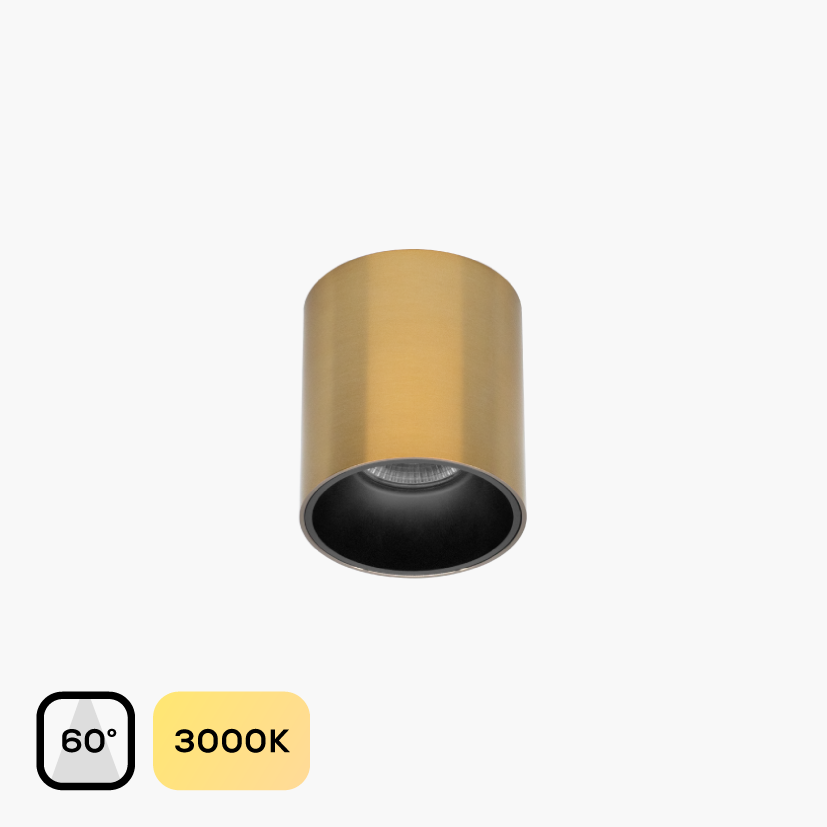

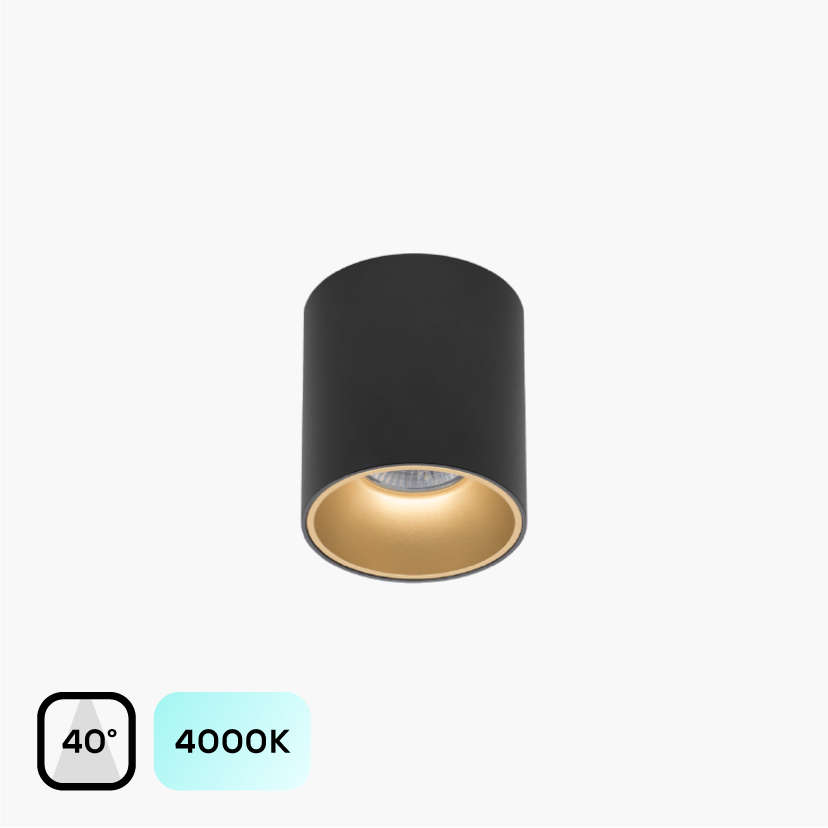

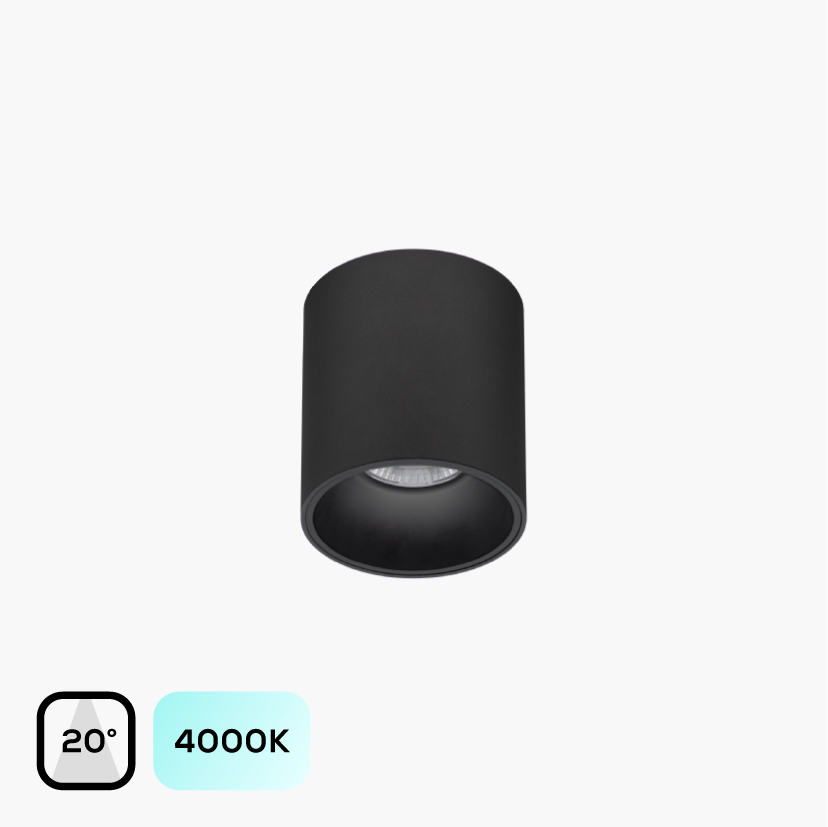

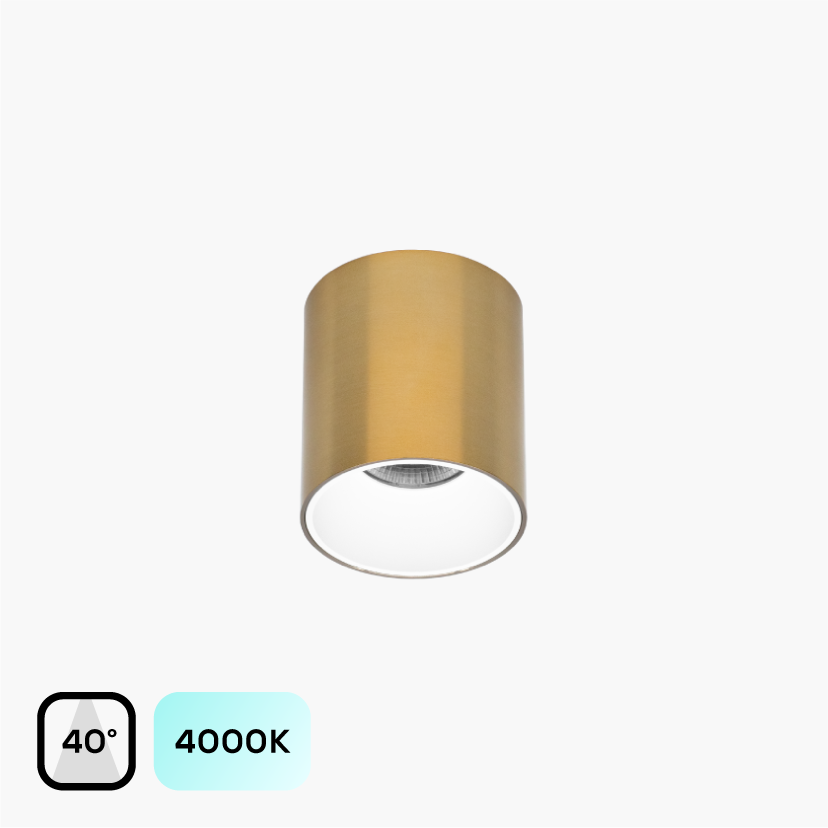

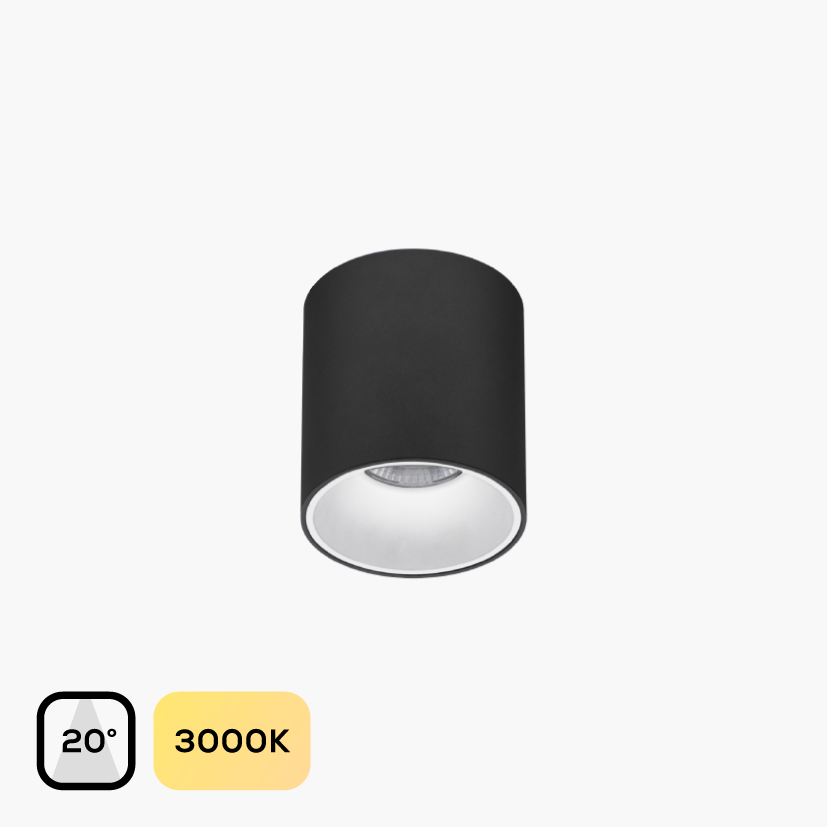

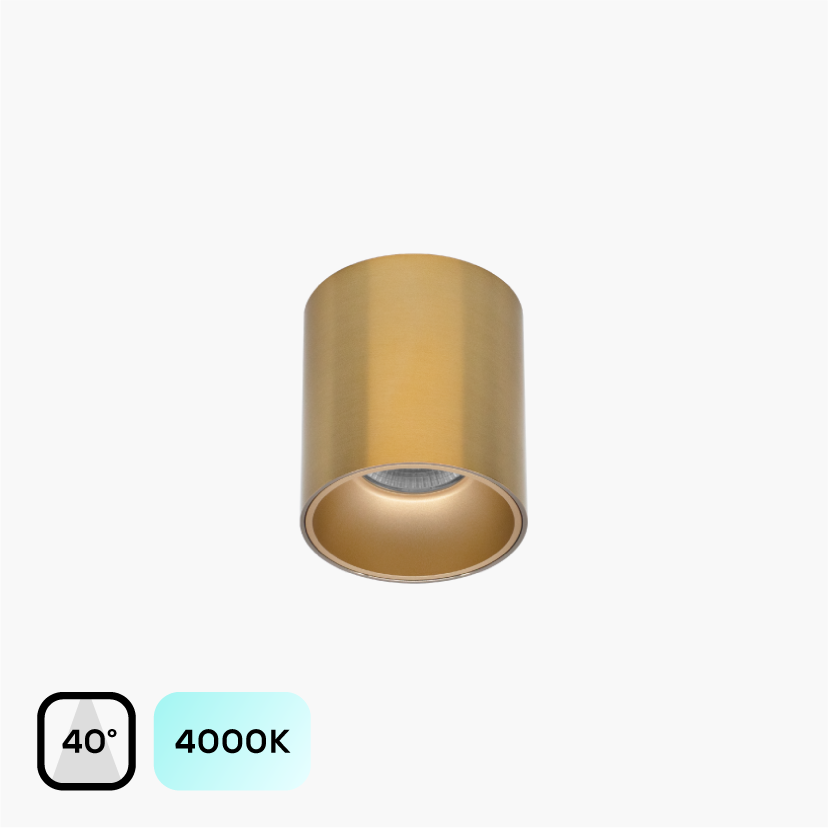

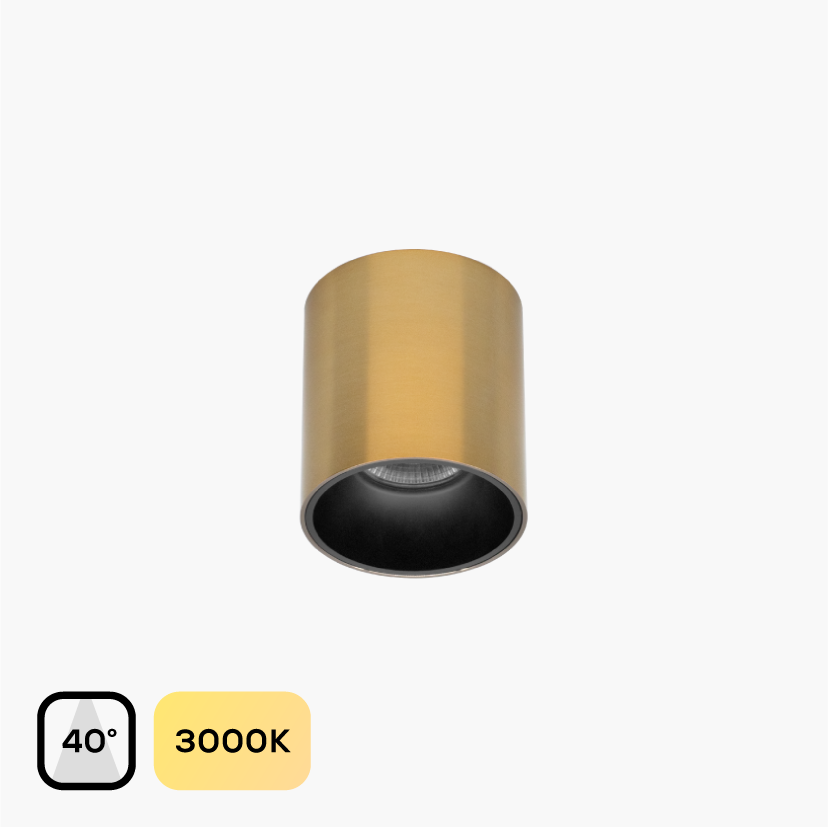

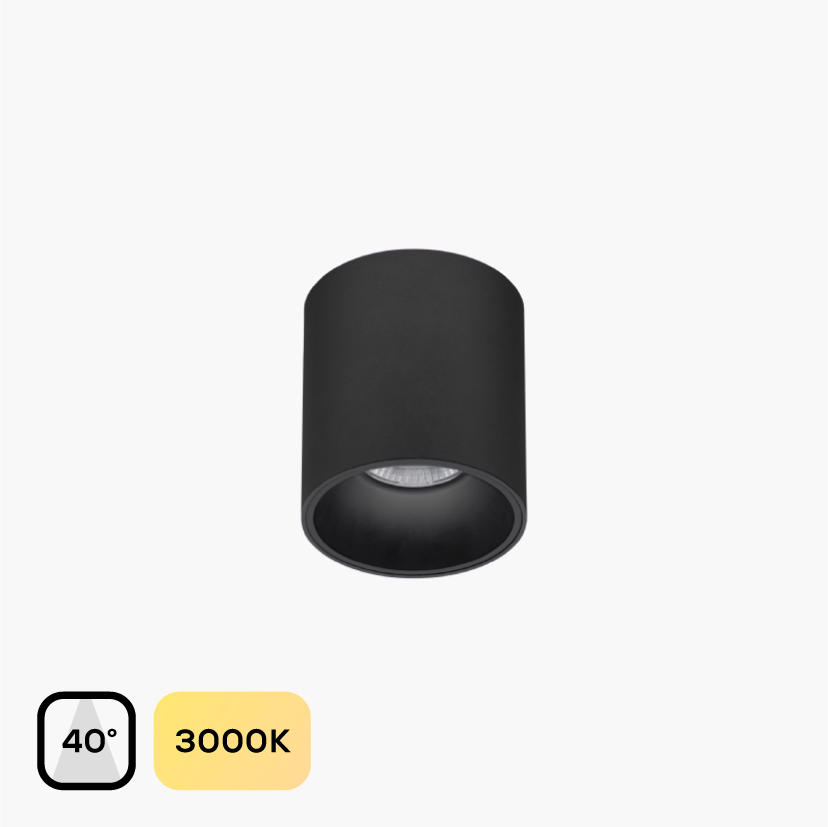

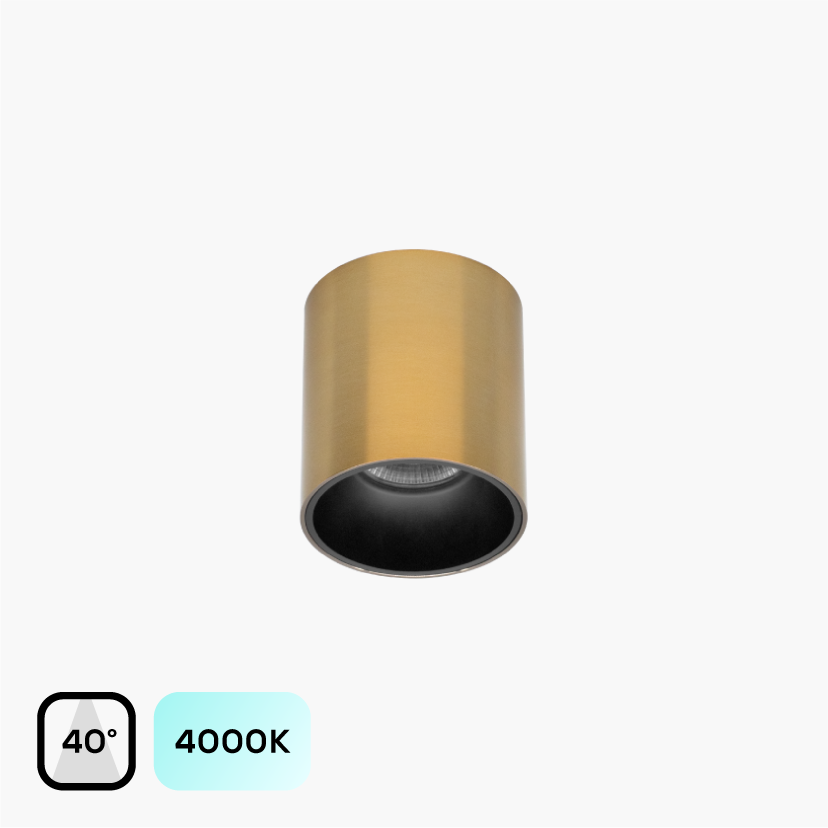

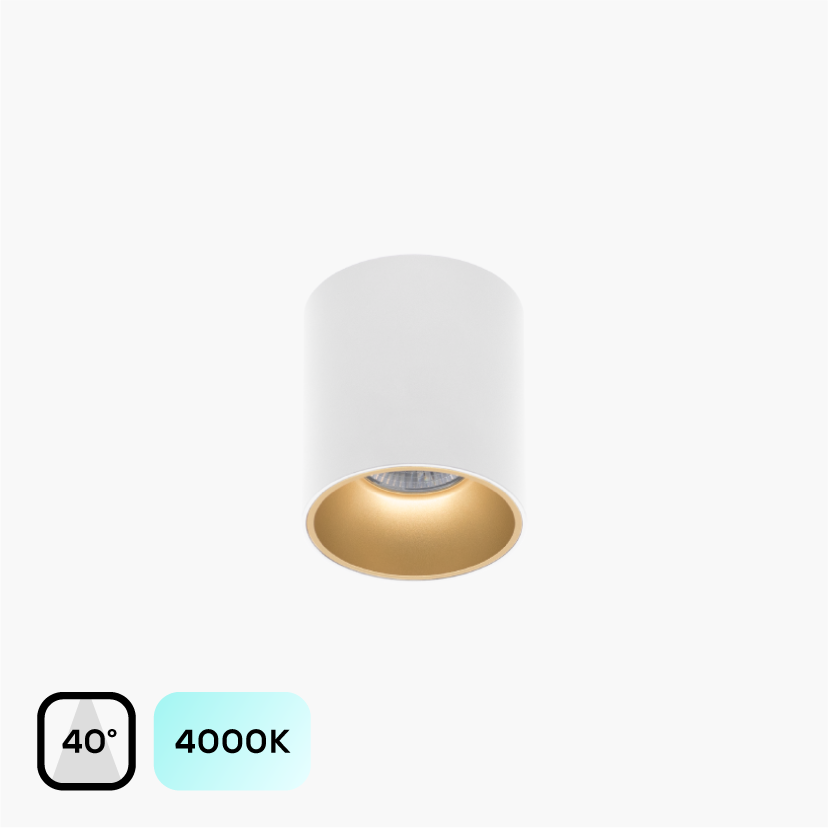

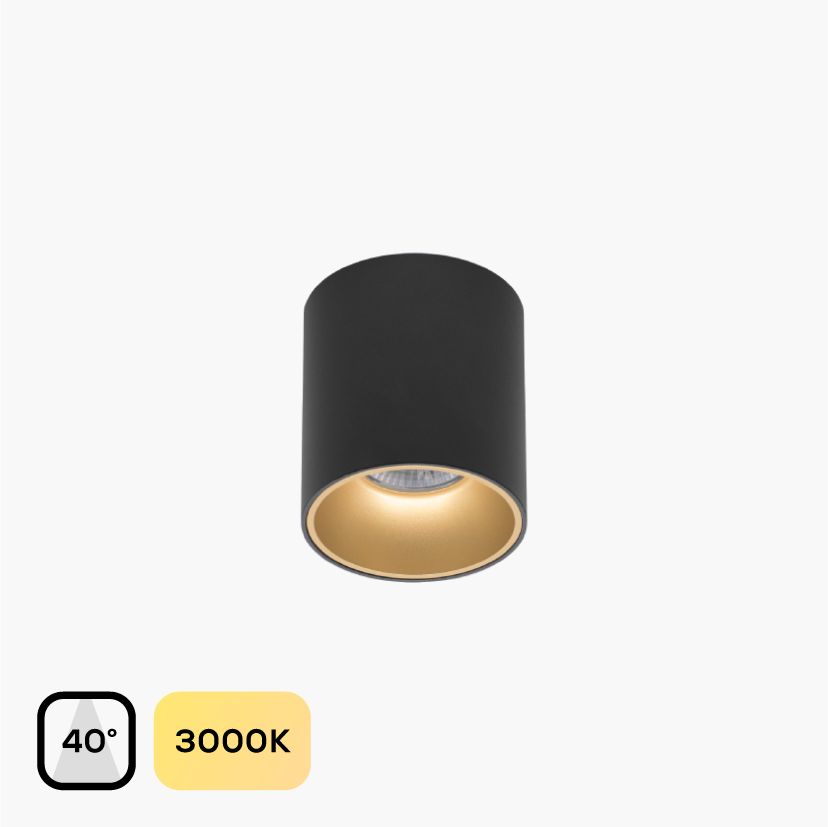

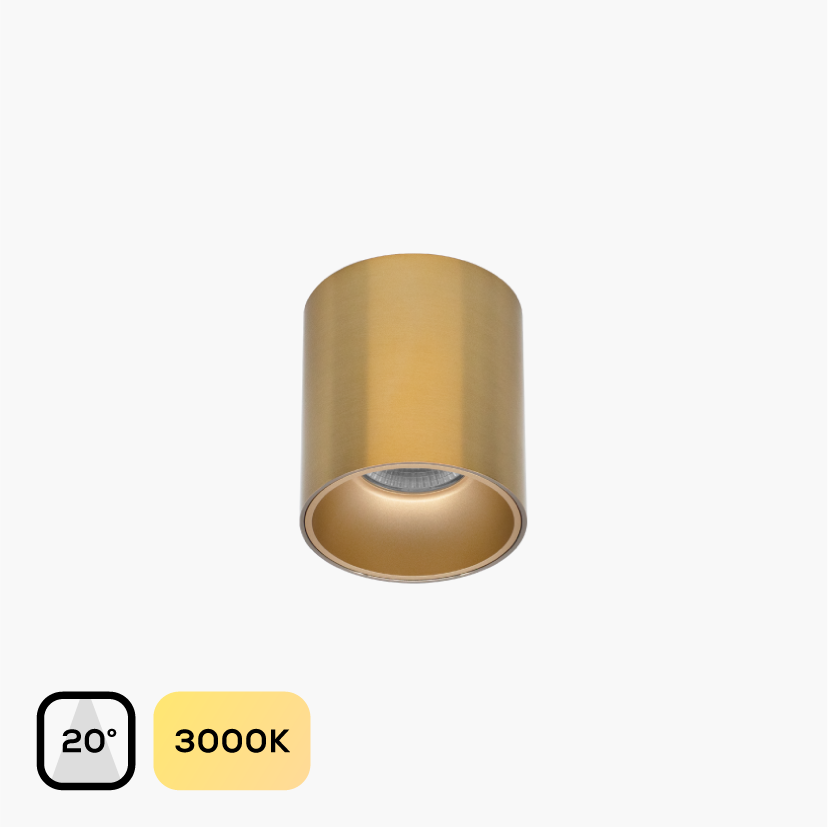

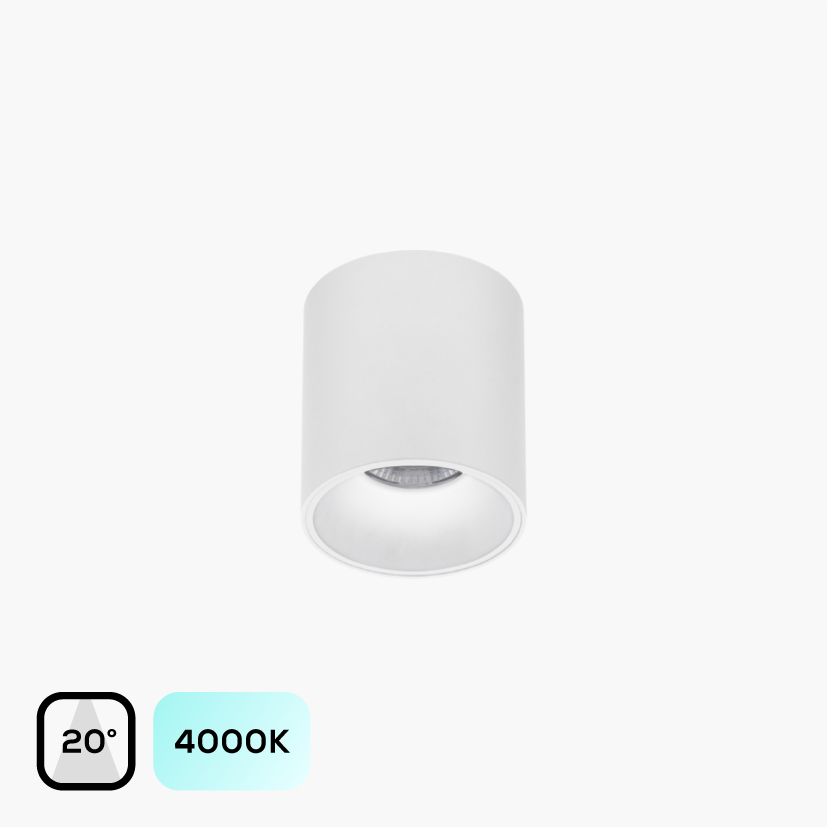

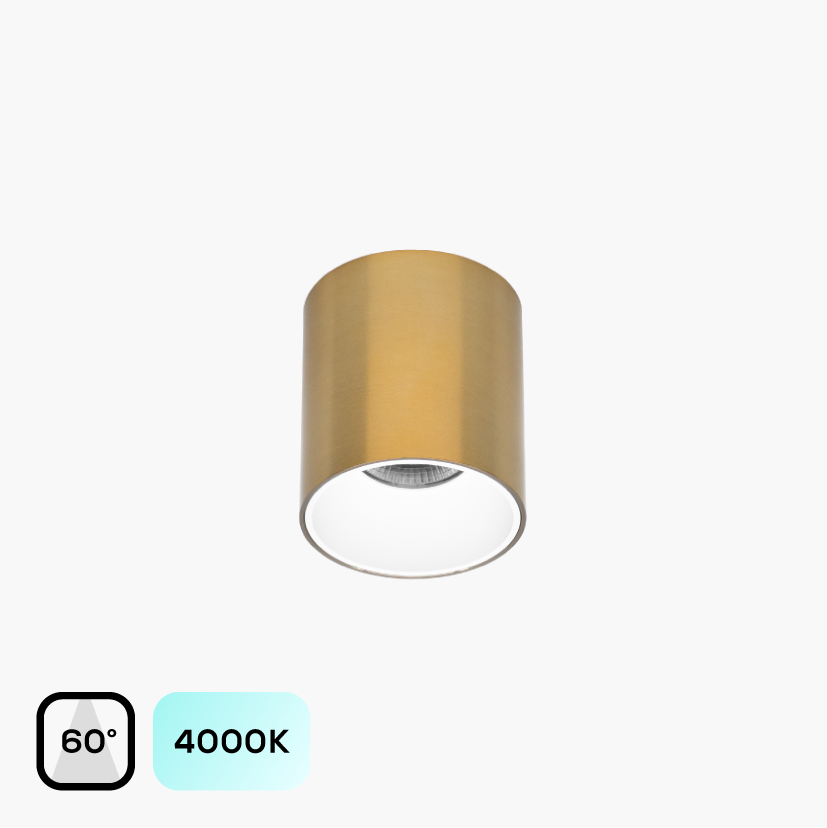

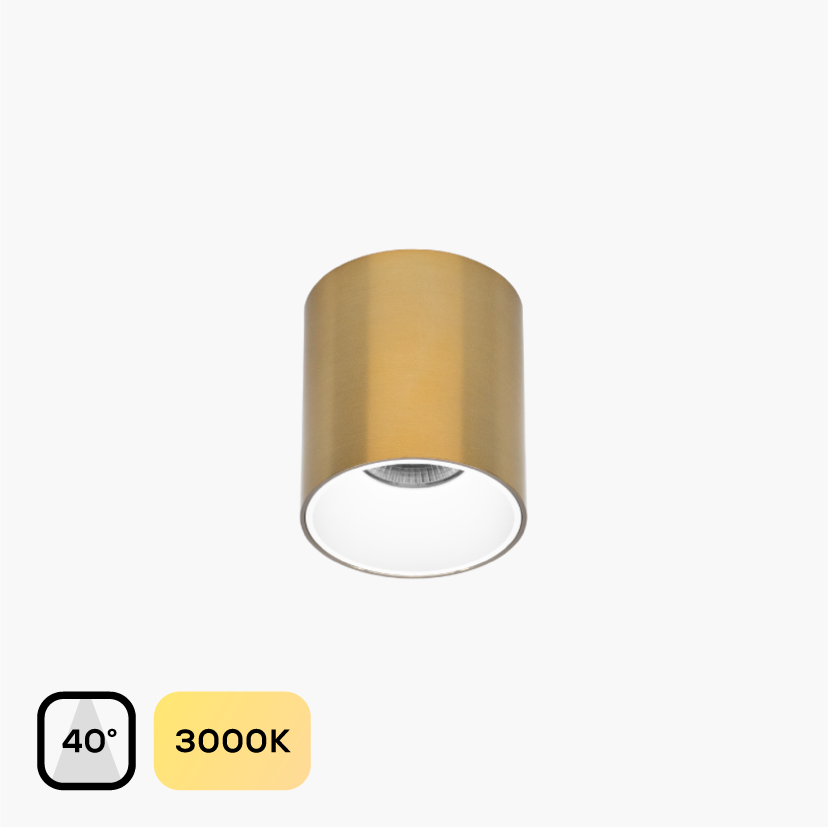

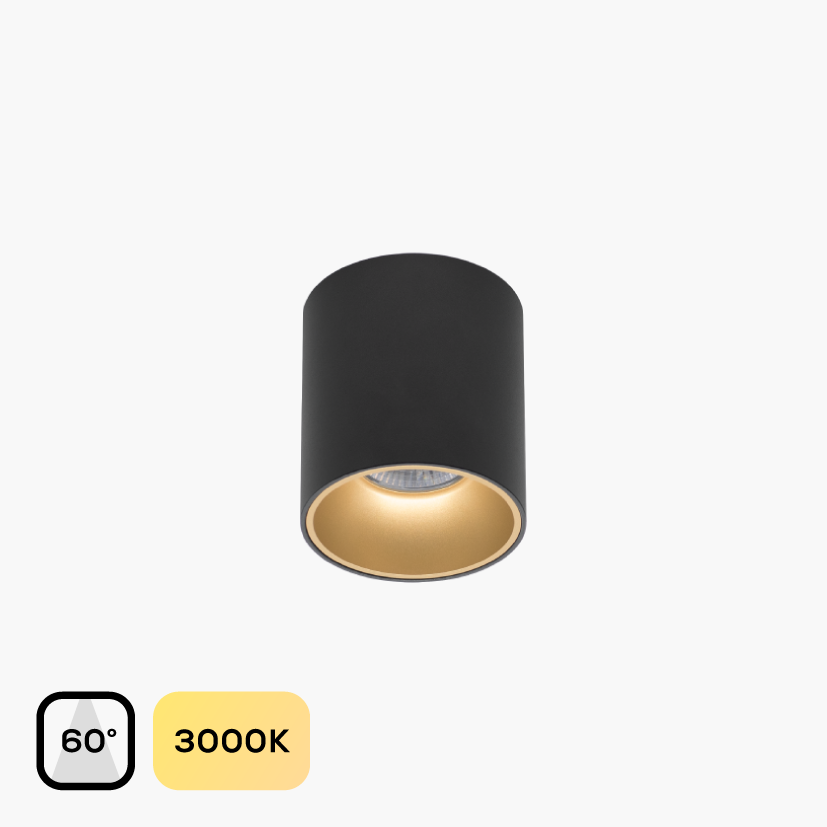

Core XS is available in
3 finishes and 2 colour temperatures.

Prev
Next
Features

Product Features

Prev
Next

Refined Black Baffle

For visual comfort and reduced glare, the Core XS comes standard with a slim black baffle design.

Deep-Set Dimmable Driver

Both the Core and Core Adjustable feature a built-in, deep-set, dimmable driver. This feature provides a seamless design and easy installation.

High Quality Light

Featuring high quality reflectors and lenses to improve light distribution, and contributing towards better performance.

General Specifications
LED 11W
CCT 3000K | 4000K
Materials Powder Coated Aluminium
Finish White | Black | Bronze
CRI 92+
IP Rating 20
Colour Deviation SDCM ≤2
UGR 18
Lifetime >55,000hrs L90B10
Warranty 5 Years
Lumens 1200 | 1300
Efficacy 118 lm/w
Beam Angles 60° | 40° | 20°
Control Gear Phase-Cut | DALI
Dimensions (MM)
ACCESSORIES
Black Baffle

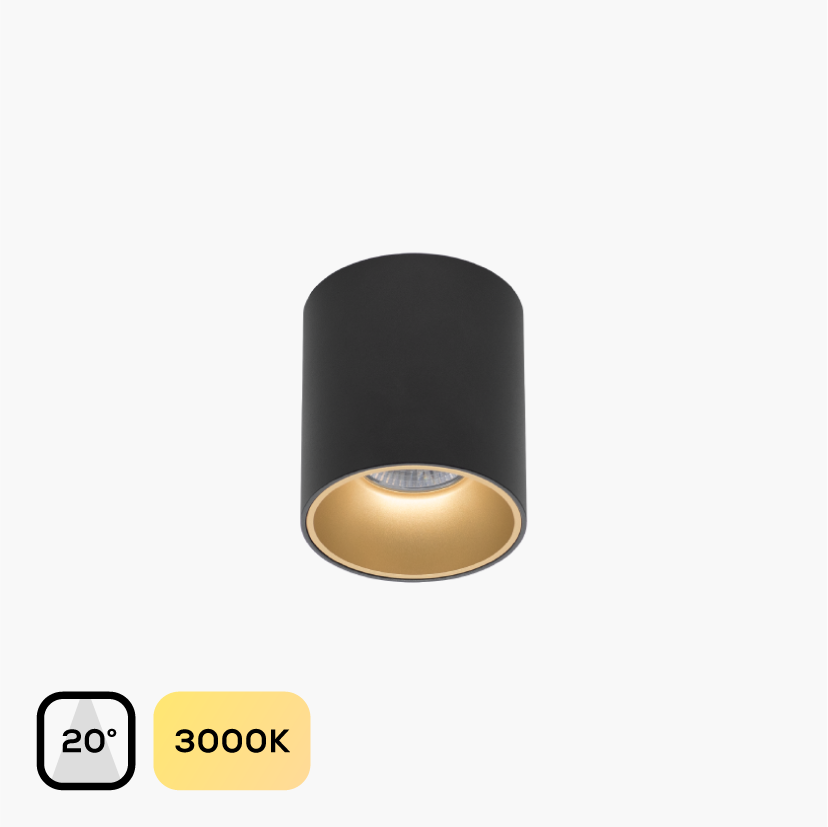

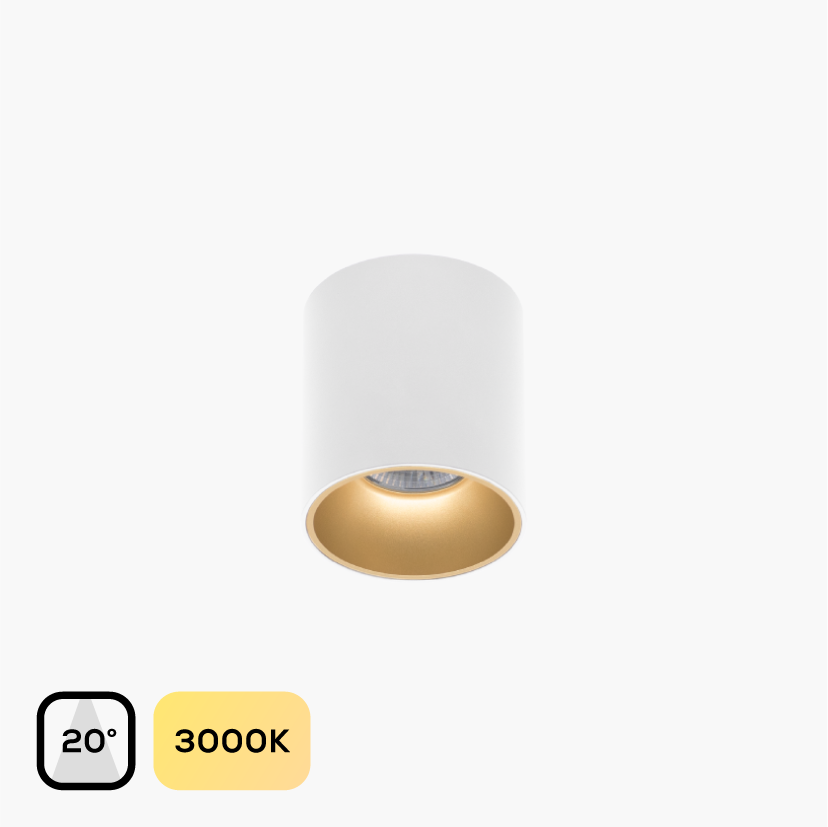

Gold Baffle

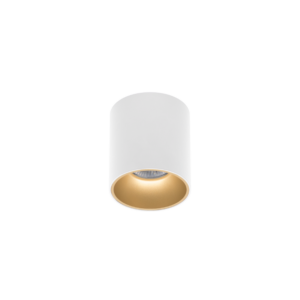

White Baffle
